Cradle

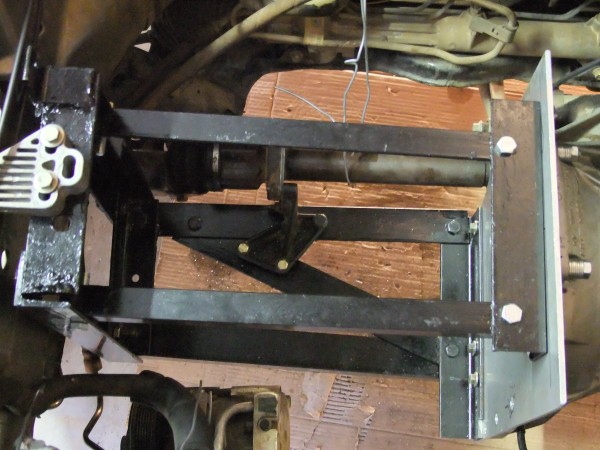

In the original petrol engine compartment, the drive shaft from the gearbox is supported with a bearing which is bolted to the engine with the aid of a bracket . With the engine removed, a cradle needed to be  built to provide this support. The cradle also keeps the gearbox in the correct position between the two original rubber engine mountings.

DSCF1974_3

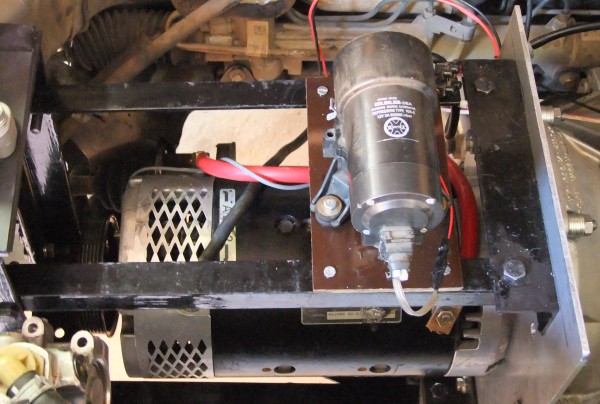

The picture below shows the DC Motor installed inside the cradle. Note, the motor is only supported by the four bolts to the adapter plate.

Motor Installed
